PVC Welding Curtains: Use and Application
Welding curtains are useful in industrial/contract sites where there is arc welding or metal grinding activity that generates sparks. Since sparks or welding arc light is harmful to the naked eye for workers nearby, or even passing by, it is important that for visual safety, welding curtains be used. Approved & tested welding curtains would provide adequate visual protection for people in the near proximity of welding/grinding activity, where exposure due to the high intensity welding spark light, could be harmful.
Welding Curtain materials are:
UV resistant per EN 25980
Ignition resistant per UL 94VTM
Conform to FM 4950

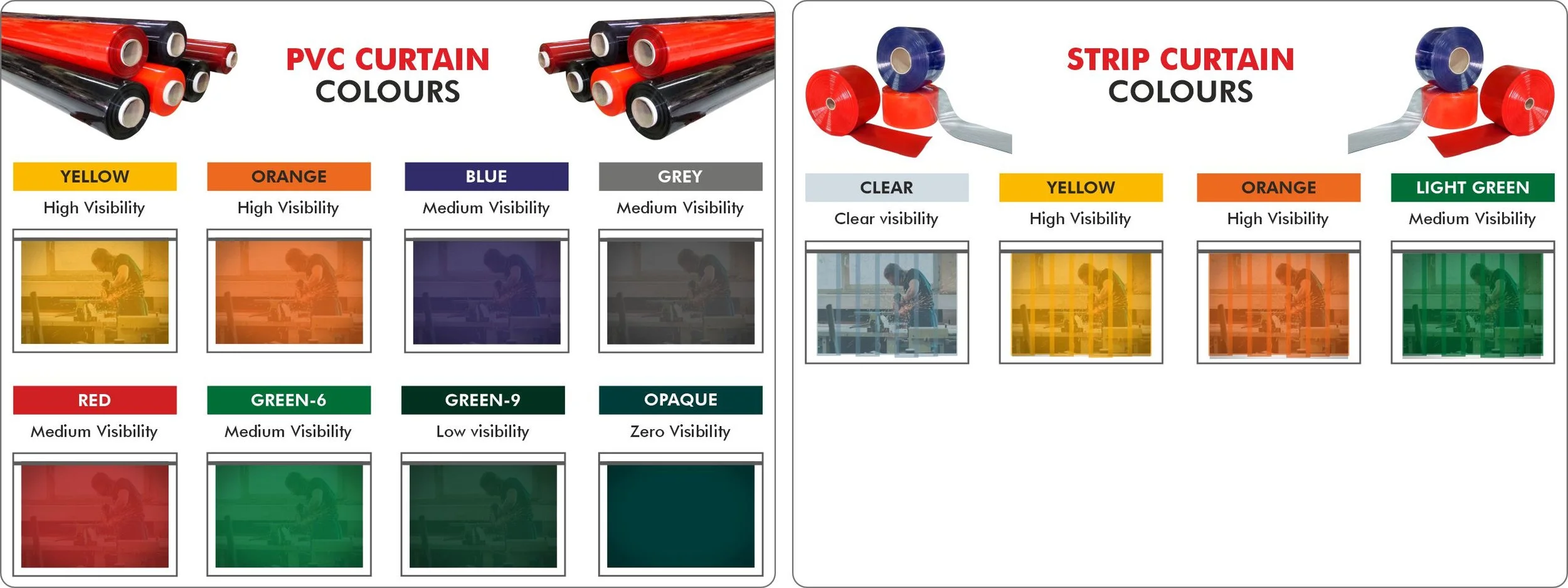

Available in various colours
All Welding Curtains are available in the following forms:
Welding screens (curtain + frame)
Welding Booths
Rolls with eyelets to use as partition walls
200mm wide Strips for walk-thru strip doorways
Welding Curtain with Frame

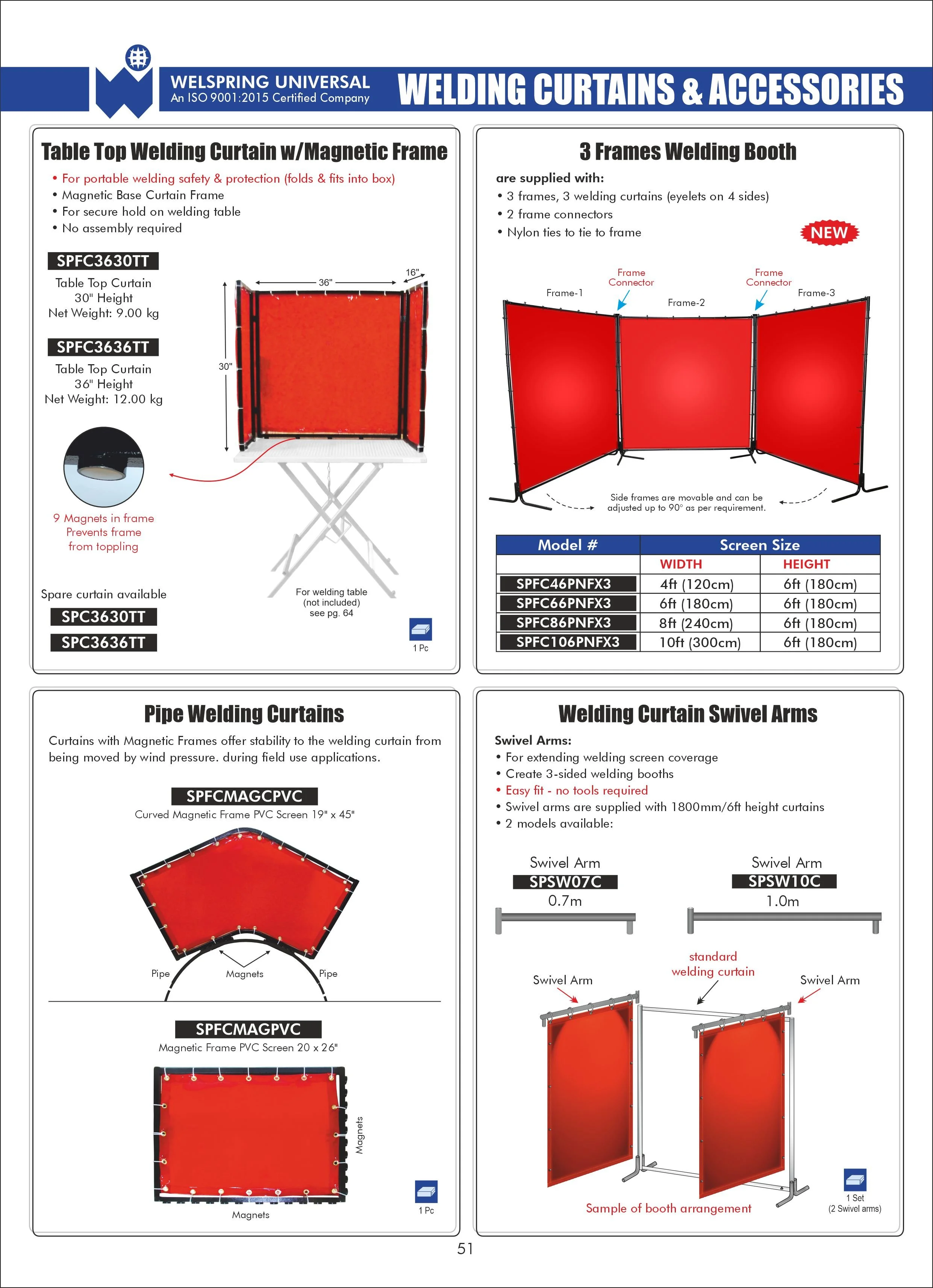

Welding Booths
Welding booths are collapsible & portable enclosures that can be carried to an industrial/contract site where arc welding or metal grinding activity is prevalent. A welding booth provides the user with a protected, cordoned off area, which inhibits the bright and harmful arc welding/metal grinding sparks from leaving the booth. Thereby reducing any harm to other people on site.
Our welding booths are made with steel frames and PVC welding curtains.
Features include:
Each section easily slides in for locking
Pipe joints have screwless push fit snap locks
No tools required for assembly
Made of 1" (25mm) round tube
PVC Welding Curtain & Strip Curtain Rolls

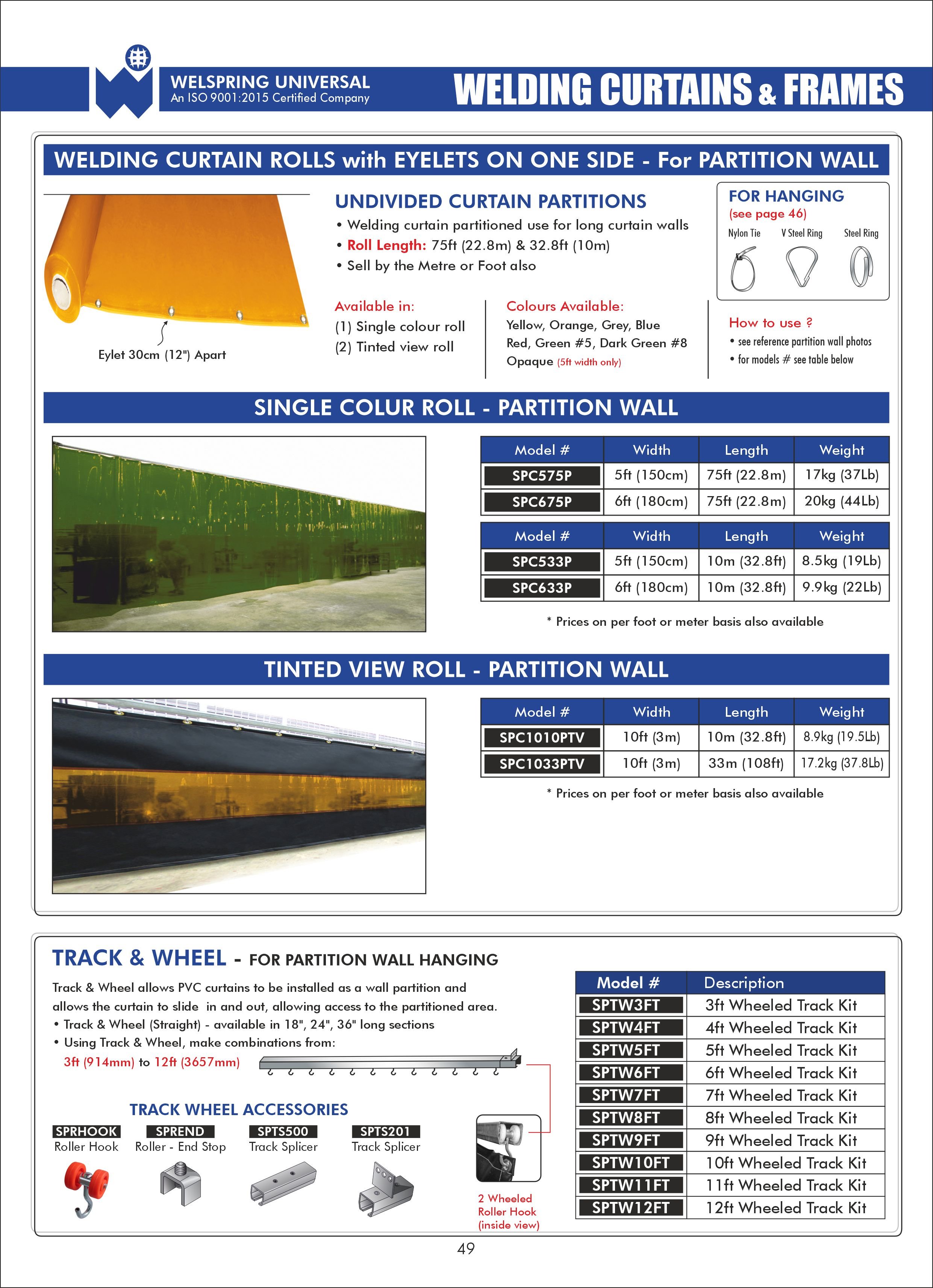

Welding Curtain Rolls with Eyelets on One Side
PVC Curtain Only

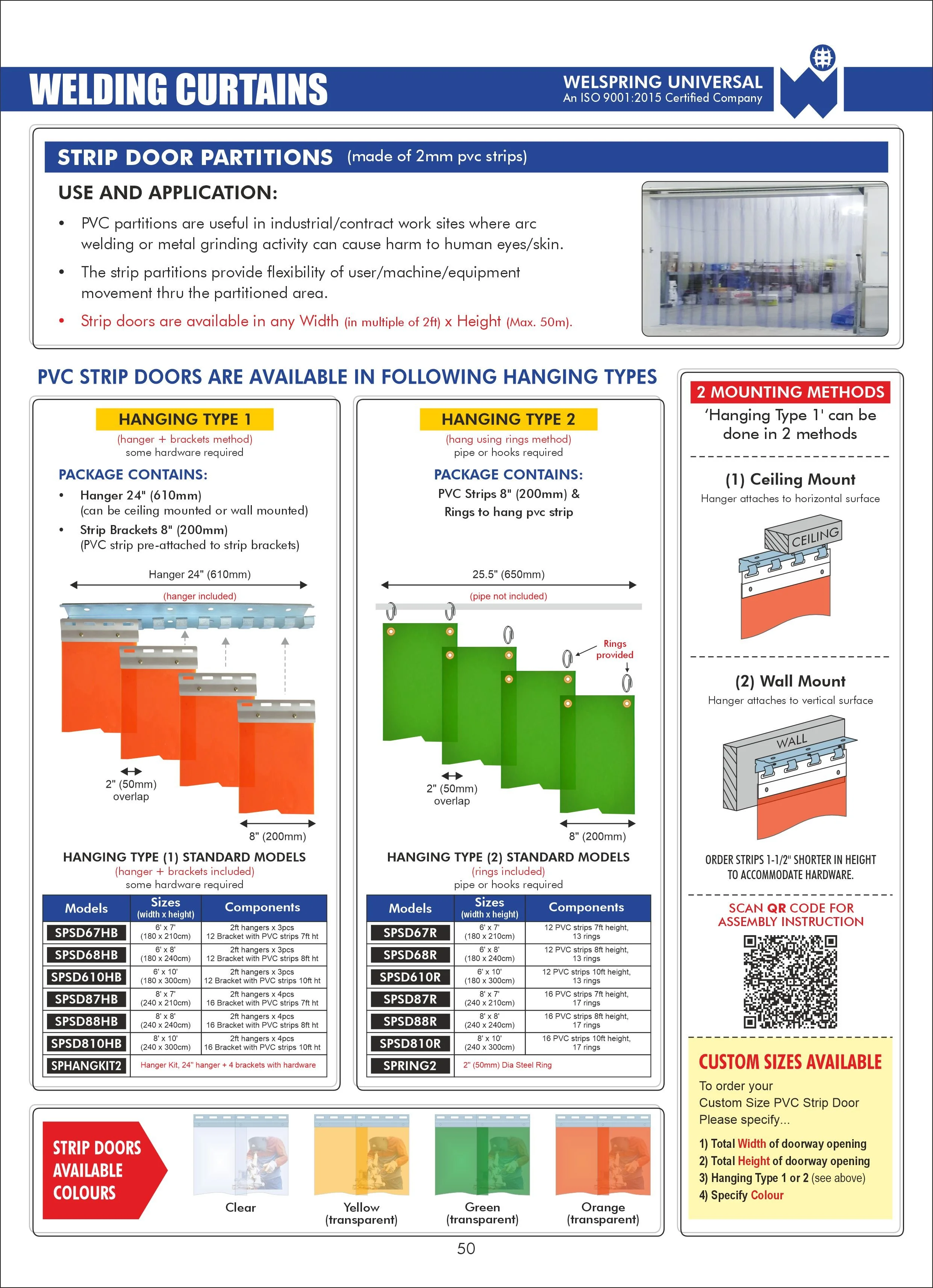

Strip Door Partitions

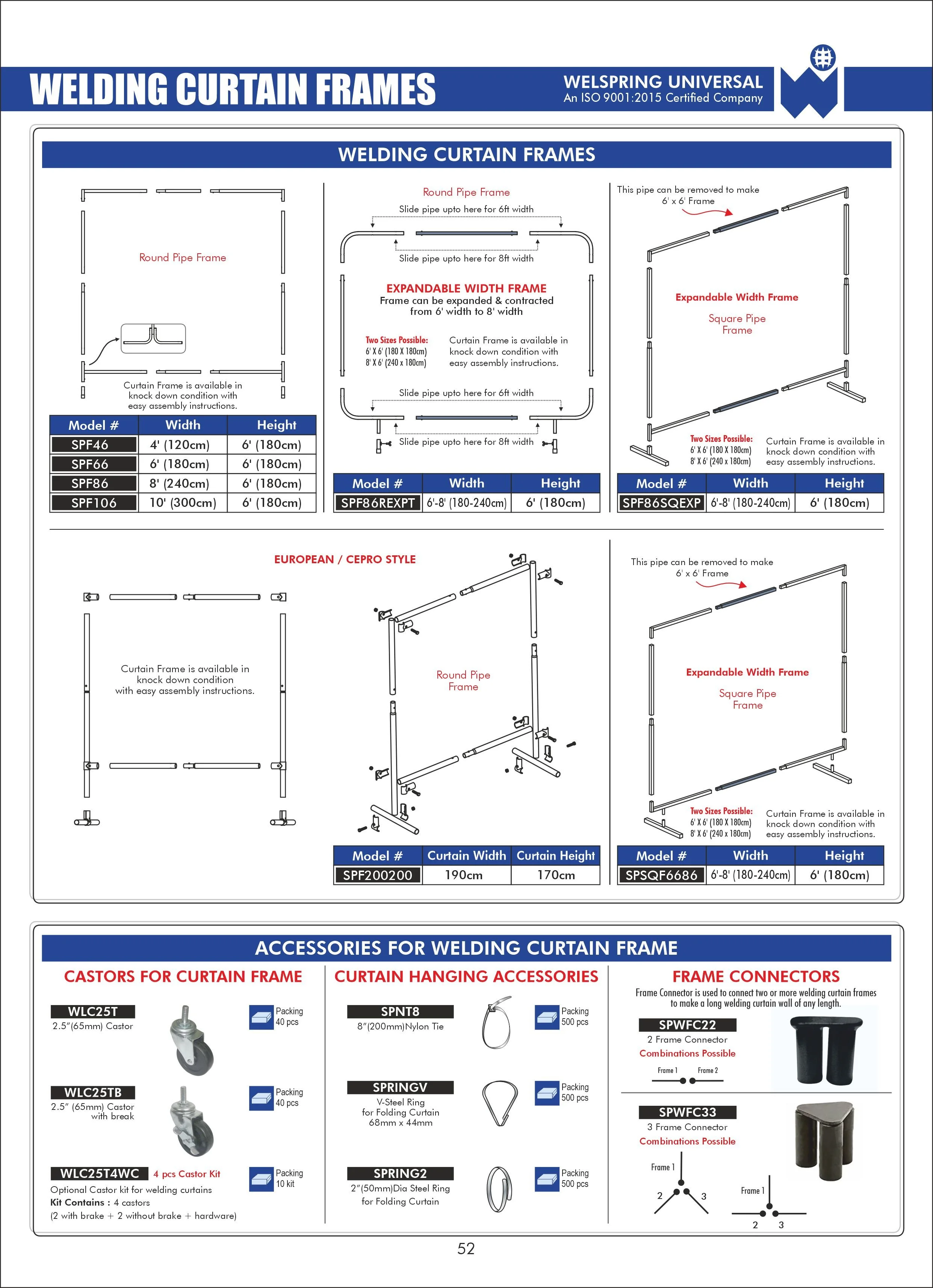

Welding Curtain Frames
Please feel free to email us at welspring@welspring.com for any enquiries, technical information, help or assistance
